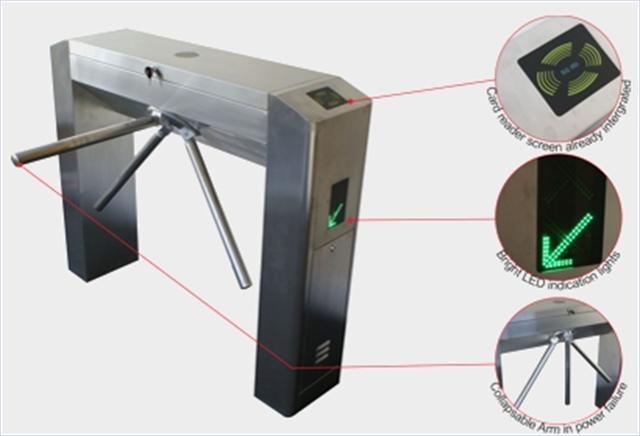

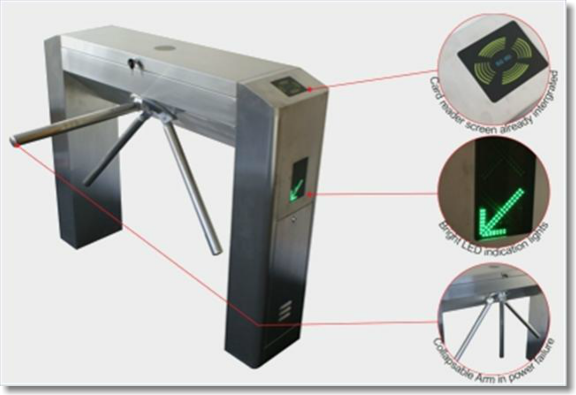

The new multi-functional half height turnstiles are an ideal solution for a variety of modern applications. Constructed from mild or stainless steel for long lasting and maintenance free performance, the PF4000HH incorporate the very latest in modern design and styling to ensure maximum convenience and ease-of-use.

The half-height turnstile range are suitable for controlling access in environments such as reception areas, health clubs, theme parks, public buildings and stadiums.

 With the range including such features as disabled access gates and being flexible enough to integrate into existing systems your needs can be catered for.

They can be situated internally or externally with the added benefit of you having peace of mind in the products longevity. Turnstiles can be configured as bi-directional or single direction only.

A wide range of access control system options are also available such as card, push button intercom or keypad, providing secure entry and exit for restricted areas. The PF4000HH comes finished in hi-grade stainless steel. Options include automatic or manual drop arms for power failure. Directional Indicators (red/green) ar included as standard

About this product:

 •PF4000 3/4 height turnstile is either 3 wing 120°, or 4 wing 90º design,

•Available in single and double walkway models.

•100% duty cycle product.

•Fabricated from all welded steel sections and plate.

•Side frames: 33mm Ø tube welded to curve base plate.

•Rotor: 76mm Ø tube with bottom support bearing.

•Arms: 42mm Ø tube with capped ends

•Cable routes through side frames.

•Single Phase 230v, 50Hz, 5 Amps

•Overall size: Single 1280mm x 1400mm x1790mm

        Double 2580mm (2450) x 1400mm x 1790mm

 •Finish: Epoxy Primer & Polyester powder coated

•Bi-directional control-Fail Safe or Fail Secure

•Programmable to function with all access and revenue control systems.

•Flow rate: 15 to 22 / min in single direction

•Options: Galvanised

•Red/Green indicator lamps

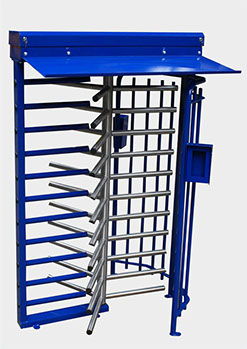

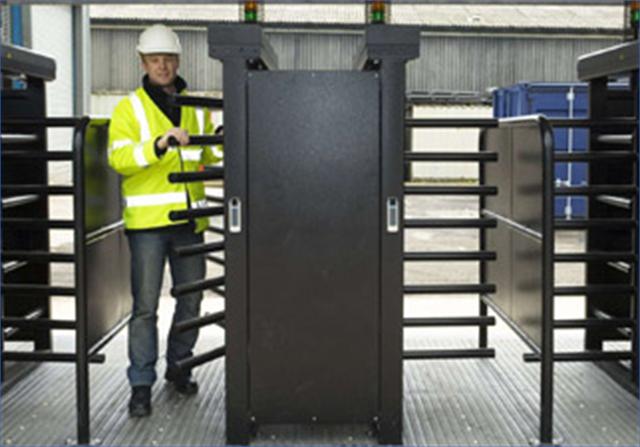

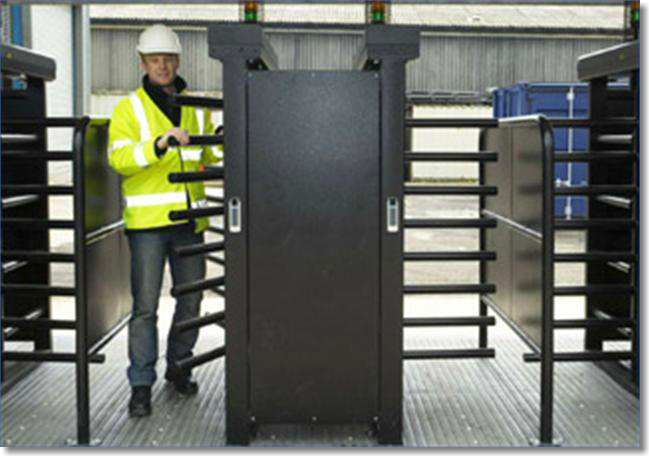

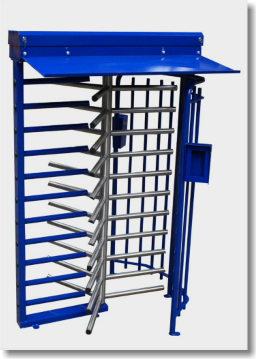

The PF4000 turnstile range is a high specification turnstile, suitable for controlling access in environments such as reception areas, health clubs, theme parks, public buildings and stadiums.

The PF4000 turnstile range are available in single or double according to your requirements. This also extends to varying heights of turnstile, again tailored to suit your needs.

Turnstiles can be configured as bi-directional or single direction only.

They are available with straight arm as standard or optional trombone arm.

 They are available as 4 wing 90° rotation to prevent “crowd loading” or 3 wing 120° rotation for faster throughput.

 Examples for access control include swipe & proximity card readers, keypads, intercom systems etc.

Specification:

 Steel hollow tubed construction, PLC control panel

 Power supply:

 Single phase 220v 50Hz, 5 amps

 Arms and body:

 Zinc coated/powder coated finish

 Dimensions:

 Single: 1480mm x 1410mm x 2350mm

 Double: 2220mm x 1500mm x 2350mm

 Rotor: 76mm ø tube with bottom support bearing

 Arms: 42mm ø tube with capped ends

 Side frames: 33mm ø tube welded to curve base plate

 Duty cycle:

 100%

 Flow rate:

 15 to 22 /min in a single direction

 Key points:

 Bi-directional control-fail safe or fail secure

 Factory settings need no adjustment

 High traffic volumes

 Helps employ strict security standards

 Internal & external installations

 PLC controlled can work with all access and revenue systems

 Cable routes through side frames

Optional Extras (Not Included in Standard Version):

 Directional Lane Light Indicators (Red/Green)

 Stainless Steel Rotors (as shown in picture)

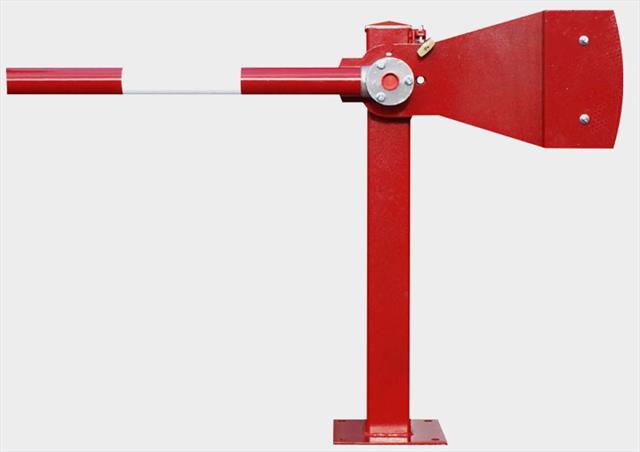

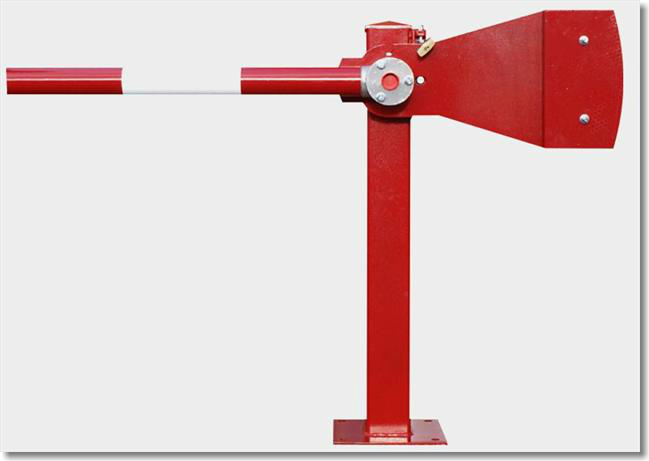

The PF5000 provides an ideal low cost solution to a wide variety of parking, road access and traffic management requirements.

This durable, hard working barrier can be locked in either the vertical or horizontal position, providing excellent security to any specified area when required.

Constructed from high quality steel and utilising a strong but lightweight aluminium pole arm counterbalanced by supporting weights, the PF5000 offers an excellent and cost effective solution for locations or situations where a fully automated barrier entry system is either not a necessity or not cost effective.

Parking Facilities Limited can also provide a full Site Preparation and Installation Service to client specification.

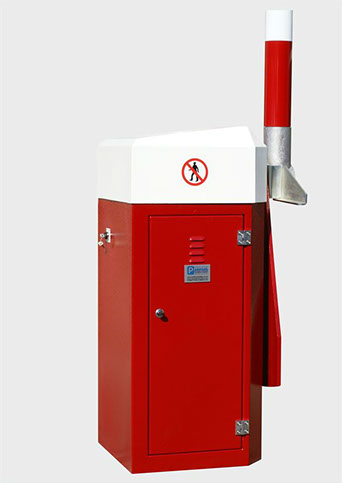

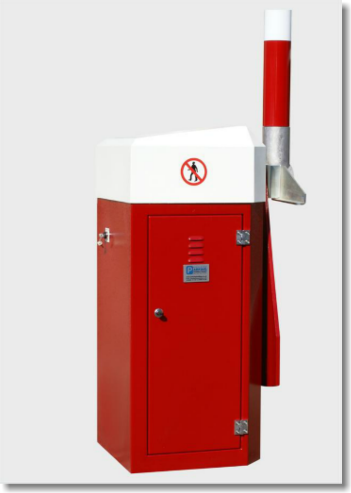

The Automatic Barrier is designed to offer long term reliability, efficient operation and durability. They incorporate an integral 3 phase inverter driven motor and gearbox drive providing a smooth consistent operation (single phase supply). The automatic barriers are controlled by a a Programmable Logic Controller, which can be programmed to suit any requirement. All versions of the barriers are CE approved and are 100% continuous duty cycle rated. Whether your application is residential or commercial, the automatic traffic barriers have the ultimate flexibility to suit your needs. If a larger span of car park barrier is required, we are able to offer a heavy duty barrier version capable of raising and lowering a pole length of up to 9 metres. The design is the result of years of experience, taking the latest technology and coupling it with tried and tested methods. The result, a superior product giving long service life and peace of mind.

The automatic barriers are powder coated red or yellow as standard (corporate colours available on request).

The automatic barrier systems, can be interfaced with unlimited access control options., such as proximity cards, remote control, vehicle identification tags, keypads, token or coin machines or can be integrated with your existing security systems
